Insulation Paper

JASDI CHEMICALS CO., LTD. have numbers of outstanding designers, engineer, export businessman, marketing, manufacturing and professional management force. Through researching and developing continuously, adopting the foreign advanced tech, perfecting and improving our arts and crafts, stressing on the quality, our Insulation Paper became special arts and crafts.
We welcome new and old customers at home and abroad to visit our company. Let's develop continually develop new

Insulation Paper

products and go ahead together. Looking forwards to our perfect cooperation and resplendent achievement in the future.
  • Insulation Paper - HT-180
Insulation Paper
Model - HT-180
Product Description

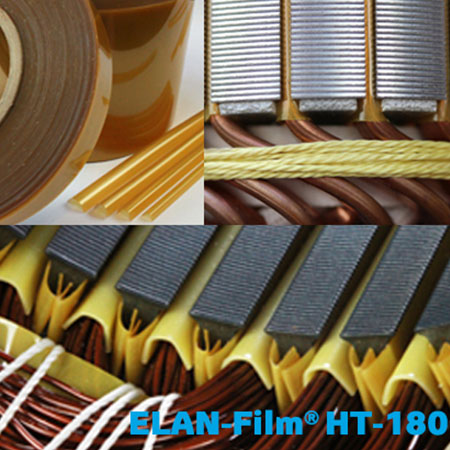

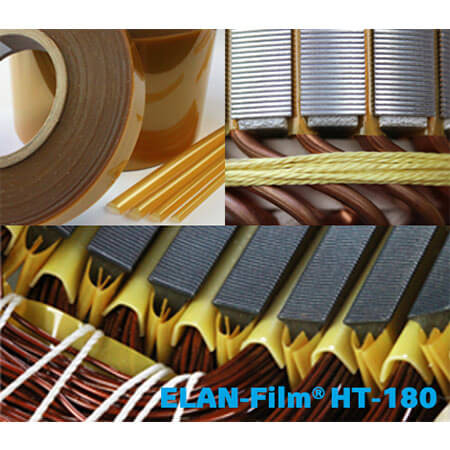

  • ELAN-Film®   HT-180  is  a  PET  film  coated  on each side with a 0.5 mil layer of ELANTAS PDG, Inc. Tritherm® polyamideimide wire enamel. The Tritherm®  coating is applied on the PET giving the film a fully integrated composite structure suitable for slitting, forming and cutting.
Areas of Application
  • ELAN-Film® HT-180 can be used in slot liners, wedges and phase applications in electric motors and in layer insulation for transformers.
Features and Benefits
  • Superior electrical properties
  • Low moisture absorption
  • Class H UL rating
  • Excellent adhesion to impregnating resins
  • Excellent chemical/refrigerant resistance
Application Methods
  • Mechanical insertion
Standard Dimensions/Storage/Transportation
  • Standard film rolls of 1.42 m (56”) wide with Tritherm® coating width of 1.37 m (54”) on a 1.52 m (60”) long, 15.2 cm (6”) ID cardboard core shrink wrapped to standard pallet. Depending upon thickness, roll length averages from 1000 m to 3000 m. Special size rolls up to 1.52 m (60”) coating width and converted film  shapes are available through distribution. Thicknesses available from 3mil - 26mil (75µm - 660µm).
  • Store in a dry area out of elements.
  • Film rolls are shipped in crates as non- hazardous, Class 55 cargo.  No special shipping instructions.
Health / Safety
  • See MSDS for specific safety and health information.
